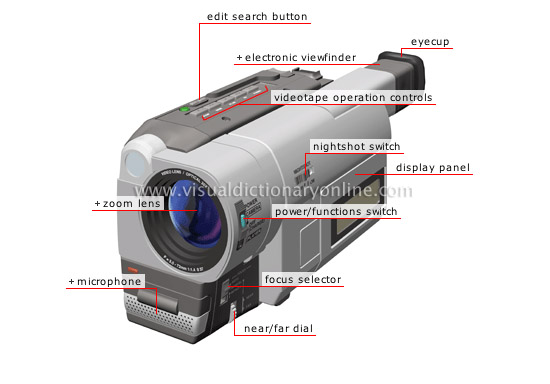

analog camcorder: front view

Portable video camera with an integrated VCR that records sounds and images on the magnetic tape of a compact videocassette.

videotape operation controls

Buttons that control viewing of recorded images; they include playback, stop, pause, fast-forward and rewind.

eyecup

Part attached to the eyepiece; the eye is placed on it for viewing.

near/far dial

Lens focusing ring used to manually adjust the sharpness of an image.

focus selector

Button used to focus the image automatically or manually.

power/functions switch

Button used to turn the camcorder on or off and to select the operating mode including camera, playback and battery recharge.

display panel

Movable plate housing and protecting the liquid crystal display.

electronic viewfinder

Small video monitor for viewing the scene to be filmed in order to frame it and bring it into focus.

zoom lens

Lens for changing the visual field so that a close-up or distant shot of the subject can be obtained without moving the camcorder.

microphone

Device that converts electric pulses into broadcast or recorded sounds.

nightshot switch

Button for activating the mode that allows filming in the dark.

edit search button

Button used to position the tape at the starting point for the next recording.
